Cemented carbide roll rings are the core high-performance wear-resistant component for modern steel rolling lines, engineered to solve the pain points of traditional rolls—frequent wear, unstable dimensions, high replacement costs and low mill efficiency. Widely used in high-speed wire rod/bar, seamless steel pipe, angle steel and high-grade alloy steel rolling, our roll rings deliver superior hardness, wear resistance and thermal crack resistance, and redefine industry performance vs conventional steel/cast iron rolls: 3X longer service life, 35% higher cost performance and 55% lower roll-change labor intensity. With fully customized grades, we precisely match diverse rolling stands, steel grades and processes, driving stable production and substantial economic benefits for global steel mills.
Core Product Range & Targeted Performance Advantages
Our full product line covers all key steel rolling links, with targeted material formulas and structural optimization for different scenarios, realizing performance-process precision matching.
🌀 High-speed Wire Rod & Bar Roll Rings
Flagship series for mainstream rolling, including general-purpose, low-temperature special and high-end wear-resistant grades (optimized WC and Co/Ni/Cr binder ratios):
- Low-temperature grades: Strengthened binder phase for 40% better creep resistance, ideal for 700℃+ alloy steel rolling, boosting rebar rolling stability by 50%.
- High-end wear-resistant grades: 30% higher wear resistance + 20% better fracture toughness via structural optimization, 1.5X higher single-groove steel passing capacity—perfect for automotive high-quality steel (tire cord/spring steel) and stainless steel rolling.
- General-purpose grades: Balanced wear/toughness/corrosion resistance, 90%+ adaptability for conventional carbon steel rolling in finishing mill middle/rear stands.

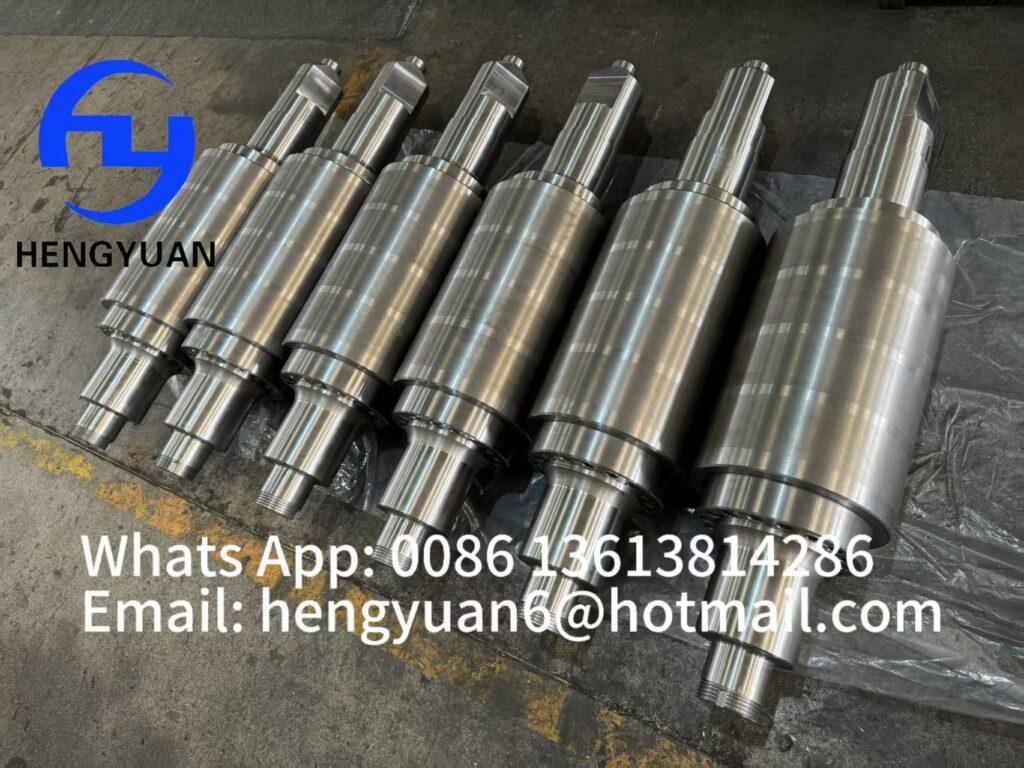

🔗 Cemented Carbide Composite Rolls
Integrating carbide roll rings with high-strength steel shafts via hydraulic axial compression technology (firm connection, no loosening; steel shaft reusable 8X+, cutting equipment loss by 50%):
- Adapt to 2-50m/s rolling speeds for traditional bar/wire rod mills, high-speed wire rod middle stands and small section steel mills.
- Achieve 1-5 slitting rolling for Φ8-Φ25 profiles (round steel, rebar, angle steel), with 0.12mm negative tolerance control and Ra0.4~0.8μm surface finish, raising material yield by 5% and reducing scrap rates.
⚒️ Special Profiled (Y-type Kocks) Roll Rings
Custom for 120° three-roll Y-type mills, with unique pass design and optimized performance:
- 20% larger pass spread allowance (prevents folding), three-sided pressure cuts head splitting by 75% (avoids steel stacking accidents).
- 85%+ uniform pass elongation/wear, one pass design for 75%+ steel grades (reduces pass change time/cost); 30% shallower grooving (extends service life under the same conditions).
📐 Steel Pipe & Angle Steel Special Roll Rings
Tailor-made for profile rolling, with impact/wear resistance optimization for special processes:
- Steel pipe rolls: 50X longer service life than cast iron rolls, ±0.06mm dimensional accuracy—boosts seamless steel pipe surface finish/size consistency; optional integrated/combined solutions for better cost performance.
- Angle steel rolls: Adapt to A25-A65 forming rolling, ±0.04mm corner arc accuracy (meets frame/mechanical manufacturing requirements); excellent anti-chipping performance (avoids roll damage from uneven stress).
Core Competitive Advantages: Why Choose Our Roll Rings?
We focus on steel mills’ core demands—efficiency, cost reduction and quality stability—and create multi-dimensional value via superior performance, customization and full-cycle service.
📈 Maximize Production Efficiency
Excellent wear resistance cuts roll/groove changes by 55% and unplanned downtime by 50%, raising mill operation rate by 15%+ and unit-time output by 20%. Stable roll wear ensures consistent rolling rhythm, matching high-speed modern mill requirements; also lightens operator labor intensity by 55%+.
💰 Substantial Cost Reduction
3X longer service life and 70% less roll consumption cut procurement costs by 35%+ and ton-steel rolling costs by 15%+. 60% less spare roll inventory capital occupation optimizes cash flow; reusable composite roll steel shafts further reduce replacement costs. 5% higher yield directly cuts raw material loss for direct economic gains.
🎯 Precision Customization & Strong Adaptability
Full grades cover 90%+ rolling scenarios (multi-slitting, low-temperature alloy steel, high-precision stainless steel, pipe tension reducing). Customize grades, dimensions and passes for your mill stands/steel grades/processes with a 1-2 week fast customization cycle; support special specs (300-450mm diameter, 30-250mm thickness) for reducing/sizing mills, with strict precision matching original equipment.
⚙️ Strict Quality & Reliable Structure
Advanced powder metallurgy and precision processing ensure 98%+ geometric tolerance precision and ±0.015mm processing accuracy—100% inspection for each roll ring (dimensions, hardness, performance) guarantees qualified ex-factory products. Hydraulic assembly (300-550bar pressure) prevents relative sliding during high-speed rolling; excellent thermal stability ensures no pitting/spalling/chipping under high-temperature conditions.
🛠️ 24/7 Global Technical Support & After-sales
One-stop service from pre-sales grade matching to in-sales installation and after-sales maintenance:
- Technical support (engineers answer selection/installation/maintenance questions); on-site guidance for key projects/large customers.
- Complete supporting services: pass layout, grooving/rib carving processing, and 98%+ adaptability special cutting tools for roll processing.
- Real-time use tracking and regular maintenance suggestions, fast problem solving to ensure unobstructed production.
Professional Application & Standardized Maintenance
Cemented carbide roll rings’ service life depends on standardized operation—following these simple specs maximizes their performance advantages:
📌 Standard Installation
- Control roll ring/shaft/taper sleeve clearance at 0.01-0.04mm (over-tightness causes cracking; over-looseness leads to sliding/scratching).
- Installation pressure: 300-550bar, process temperature: 25-32℃; scrub assembly surfaces clean (no impurities/oil/burrs) for a tight fit.
- Forbid hammer striking/roll ring collision; take anti-collision/scratch protection during transportation/installation.
🧊 Scientific Cooling (Key for Longevity)
- Cooling water: ≤38℃, 0.4-0.65MPa pressure; keep roll surface temperature below 55℃ to avoid performance attenuation.
- Steel outlet water volume accounts for 30% of total (core cooling area); water column sprays directly into the groove (15°-30° to roll rotation) without scattering.
- Water quality standards: pH 7.5~8.0, solid particles ＜18mg/L, chloride ≤45mg/L, calcium ion ≤420mg/L, sulfate ≤80mg/L; match binder phase grades to water quality to avoid corrosion.
- Check water pipes/nozzles every 4 hours; install pressure monitoring/alarm, stop immediately if water is cut off.
🔧 Rolling & Grinding Maintenance
- Strictly control rolling volume (pre-finishing stands: ≥6000 tons/slot; finishing rear stands: 800-4500 tons/slot)—forbid over-rolling to avoid crack expansion.
- Grind roll rings when micro-cracks reach 0.2mm (remove cracks completely); normal grinding amount: 0.4-1.8mm, 90%+ reuse rate after grinding.
- Use high-end processing tools: CBN/PCD tools for turning (15-28rpm, 0.2-0.5mm/r feed, 0.2-0.6mm depth); resin/diamond grinding wheels (Ra0.5μm grinding accuracy).
🚨 Abnormal Disposal & Daily Protection
- Lift upper roll immediately if steel jams/stacking occurs; keep cooling until roll piece temp drops below 220℃—forbid no-water operation (avoids thermal cracking).
- Natural cool roll rings to room temp if accidental no-water operation happens; forbid direct water spraying (prevents thermal shock cracking).
- Mark composite roll upper/lower rolls clearly; keep cooling for 5+ mins after rolling before changing rolls.
- Inspect hydraulic nuts/bolts monthly (tighten/anti-rust, ≥2.5 months protection cycle); apply anti-rust oil to long-term stored rolls (≥10 months shelf life), store in dry/ventilated areas.
Comprehensive Supporting Services
Beyond high-quality roll rings, we offer full life-cycle supporting services for a seamless production experience:
✅ Pre-sales grade matching (optimal plan based on your mill/steel/process parameters)
✅ One-stop roll processing (pass layout, grooving, rib carving)
✅ Special consumables supply (cutting tools, grinding wheels with stable quality)
✅ Training/guidance (installation, commissioning, roll change for your operators)
✅ Long-term maintenance/recycling (grinding, replacement, and worn roll recycling to reduce environmental waste)
👉 DM for Detailed Catalogue / Custom Quotation / Grade Matching Plan
We provide tailor-made carbide roll ring solutions for global steel mills, with superior performance, strict quality control, fast delivery and comprehensive after-sales service. Whether for conventional carbon steel or high-precision alloy/stainless steel rolling, we match the perfect roll ring products to drive your production toward higher efficiency, better quality and lower cost.
