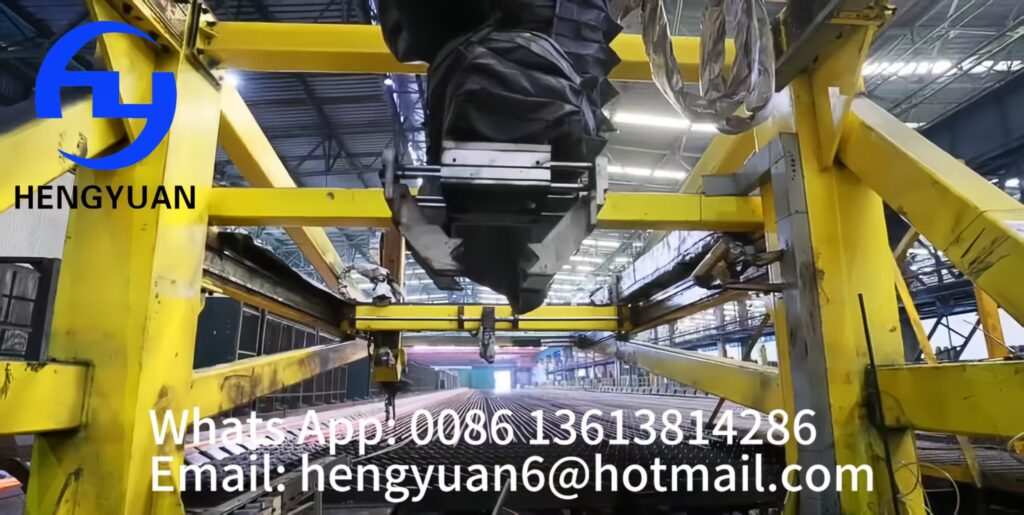

Cold Bed Robotic Automatic Sampling & Testing System

The Definitive Solution for Intelligent Upgrading in the Metallurgical Industry

In large-scale metallurgical bar production, cold bed sampling is a critical quality control step. Long-term reliance on manual sampling creates persistent pain points: high-temperature working conditions, repetitive labor, low operational efficiency, poor precision control, non-standard data recording, and limited traceability. These challenges have become major barriers to production line intelligence and efficiency gains—a problem solved by the cold bed robotic automatic sampling and testing system.

Engineered for the harsh, high-demand environments of metallurgical production (extreme temperatures, heavy dust, high-speed production cycles), this fully automated system replaces manual labor for bar sampling and testing. It adapts to a wide range of bar specifications, withstands extreme ambient temperature fluctuations, and delivers a seamless, end-to-end automated workflow—from plasma cutting and sample cooling to fixed-length processing, surface inspection, and real-time data uploads. The result: a more efficient, accurate, and controllable cold bed sampling process that elevates overall quality control for metallurgical bar production.

Core System Advantages

1. Fully Automated Operation, Aligned with High-Speed Production Rhythms

• Interlocked with walking beam cold beds for real-time motion tracking and synchronous operation—no production line downtime required
• Precisely controlled full-process cycle times, with single sampling completion far faster than manual operation
• Flexible sampling frequency customizable to production and quality control requirements
• 100% unmanned workflow from cutting to testing, eliminating manual bottlenecks and enabling efficient large-scale production

2. High-Precision Sampling & Testing, with Full Data Traceability

• Accurate sampling length control with minimal error, compatible with multi-slitting, double-slitting, and single-line production processes
• Mechanical design ensures sample bars remain unbent, unmarked, and scratch-free—no impact on subsequent surface/physical property testing
• Integrated high-precision meter weight measurement system (meets industry high-precision standards) for automatic calculation of bar weight and weight negative deviation per national regulations
• Real-time data recording and cloud upload for full quality data traceability, delivering actionable insights for process optimization and quality control

3. Intelligent Visual Positioning & Tracking, for High Sampling/Grasping Success Rates

• Professional vision system powered by machine vision and deep learning algorithms for real-time dynamic tracking of single/multi-slitting bars on cold beds
• Precisely identifies bar end faces and optimal sampling points, guiding robotic cutting/grasping with unmatched accuracy
• In-line flame detection for real-time cutting process/result monitoring, minimizing deviations and errors
• Industry-leading cutting and grasping success rates, reducing material waste and production losses

4. Rugged High-Temperature & Dust-Proof Design, for Harsh Metallurgical Environments

• Full-range thermal insulation and dust-proof protection for all core components: High-temperature resistant protective sleeves for cylinders, lead screws, and cables (ultra-high temperature rated) Custom insulation sleeves + high-temperature protective clothing for servo motors and industrial robots (industrial-grade high protection rating) Fully sealed servo ground rails to block dust and high-temperature airflow
• Ensures long-term, fault-free operation in extreme metallurgical conditions, reducing maintenance frequency and extending equipment lifespan

5. Multi-Layer Safety Protection, with Flexible Operation & Easy Maintenance

• Intelligent safety interlock system: Exclusive protective fencing triggers immediate robotic emergency stop and three-color light audible/visual alarm when access doors are opened—full hardware-level operator safety
• Auto/manual dual-mode operation: Unmanned full-process automation for normal production; manual single-unit control for fast troubleshooting and quick production resumption (low operational threshold)
• Built-in intelligent fault diagnosis: Automatic alarm for equipment abnormalities, with real-time display of fault location, cause, and targeted solutions
• Reduces maintenance costs and ensures continuous, stable production line operation

6. Customizable Design, for Universal Multi-Scenario Adaptability

• Tailored to the unique needs of different steel plants: production processes, on-site space layout, and bar specifications
• Optimal on-site space utilization with customized layout planning
• Supports both automatic and manual sampling—no disruption to quality control during equipment maintenance
• Minimal retrofitting for existing production lines: fast installation, commissioning, and deployment
• Highly compatible and practical for metallurgical bar production of all scales and processes

Core Configuration & Standardized Workflow

Core Hardware

• Multiple six-axis industrial robots paired with fully sealed servo ground rails: precise, fast collaborative operation for sampling, handling, and cutting
• Integrated professional functional units: plasma cutting system, cooling water tank system, material splitting system, fixed-length sawing system, and surface testing system (end-to-end closed-loop workflow)
• High-end industrial PLC main controller with high-speed industrial communication protocol: interlocked control of all units for stable system operation and accurate instruction transmission (ideal for high-speed metallurgical production)

Standardized Automated Workflow

1. Visual positioning system identifies bar end faces and locks sampling points when the system receives a sampling signal or reaches the preset time
2. Sampling robot moves synchronously with the cold bed; plasma cutting system cuts the bar, and mechanical gripper grasps the sample
3. Sample bar is transferred to the cooling water tank system for professional cooling (ensures subsequent testing precision)
4. Handing robot moves the cooled sample to the material splitting system for splitting and centering (multi-slitting bars)
5. Split/centered sample is sent to the fixed-length sawing system for precise cutting to meet testing specifications
6. Fixed-length sample is transferred to the surface testing and meter weight measurement systems for comprehensive precision testing (surface quality, actual meter weight, weight negative deviation, etc.)
7. Tested sample is automatically collected to a designated area; all data is uploaded to the system backend in real time for storage and traceability—system immediately initiates the next sampling cycle

Global On-Site Application & Industry Empowerment

This cold bed robotic automatic sampling and testing system is successfully deployed across key metallurgical production scenarios worldwide, including:

• High-grade special steel workshops
• Large bar production lines
• Bar coil production lines
• Standard bar production lines

It adapts to sampling and testing needs for all bar specifications and production processes, delivering transformative value for steel plants:

• Eliminates high-temperature manual sampling risks and reduces human resource costs
• Boosts sampling efficiency and testing precision via automated, high-accuracy operation
• Enables precision quality control and full data traceability for process optimization and product quality improvement
• Elevates production line automation and intelligence levels
• Drives cost reduction, efficiency gains, and quality improvement for metallurgical enterprises
• Accelerates the metallurgical industry’s transition to intelligent, green, and high-efficiency manufacturing

Wide Application Scope

This system is purpose-built for the metallurgical industry and is widely used in the cold bed sampling link of iron and steel production lines, including bar, high-grade special steel, large bar, and bar coil production. It meets the on-line automatic sampling and quality testing needs of all specifications of rebar, round steel, and other metallurgical bars—the core supporting equipment for metallurgical enterprises to achieve production intelligence and refined quality control.
