1. Productivity Breakthrough: Multi-Workpiece Parallel Processing + Wide Adaptability
1.1 Simultaneous Straightening: Enables multi-piece section steel straightening at once, increasing single-batch capacity , solving the pain point of “single-piece processing with limited output” of traditional equipment.
1.2 Multi-Profile Compatibility: Suitable for round steel, square steel, flat steel, angle steel (covers 5#-12.5# angle steel mainstream specs), no frequent adjustments needed for diverse production plans.
1.3 High-Efficiency Drive: Max straightening speed up to 3m/s, equipped with 560kw high-power motor, annual output up to tens of thousands of tons for large-scale production.
2. Quality Assurance: Micron-Level Precision + Stable Structure

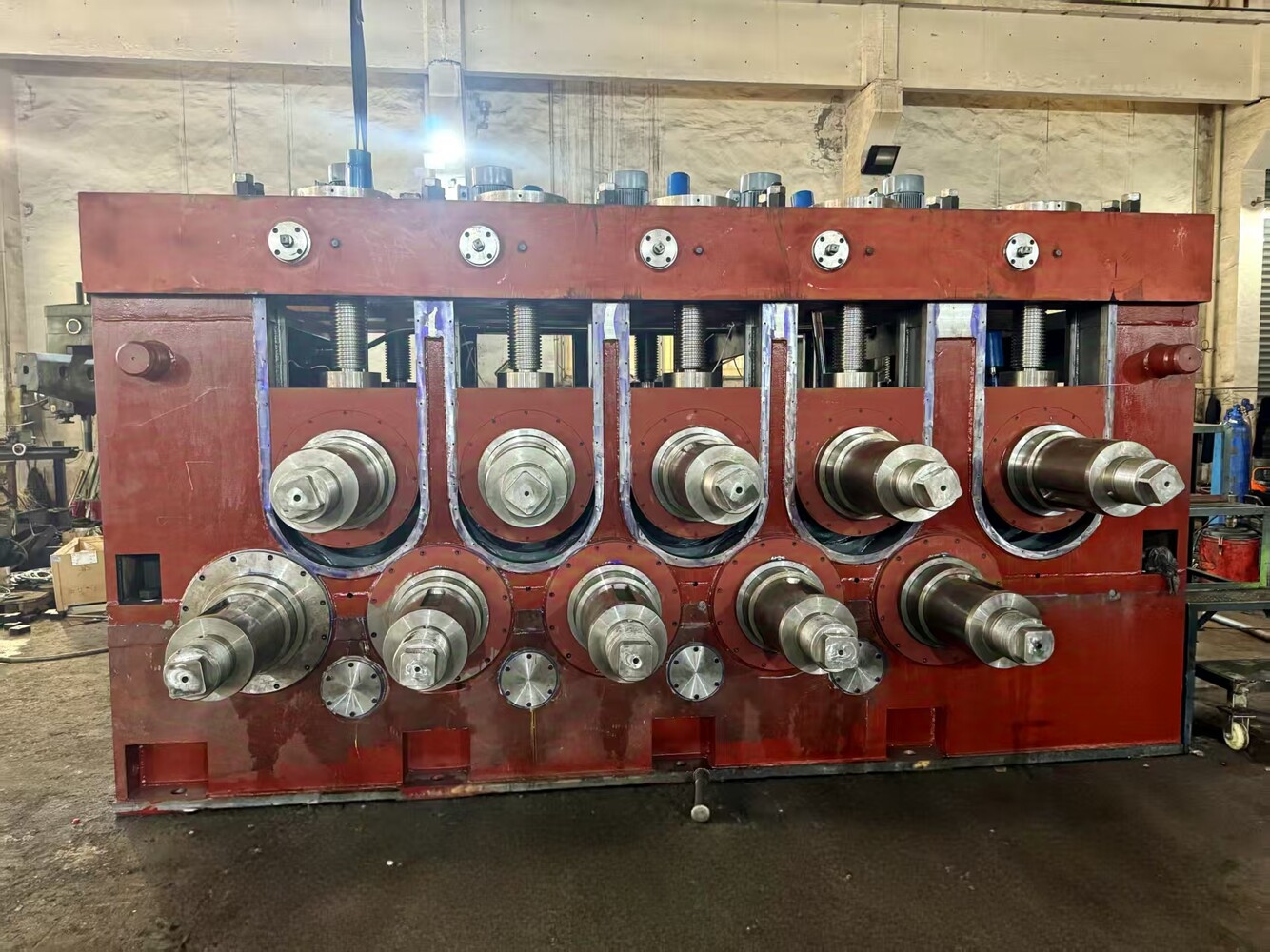

2.1 High-Precision Roller System: 10-roller layout (5 upper drive rollers + 5 lower passive rollers) with roller diameter φ525~φ450mm, roller width 1200mm, straightness error ≤0.05mm/m², exceeding industry standards.

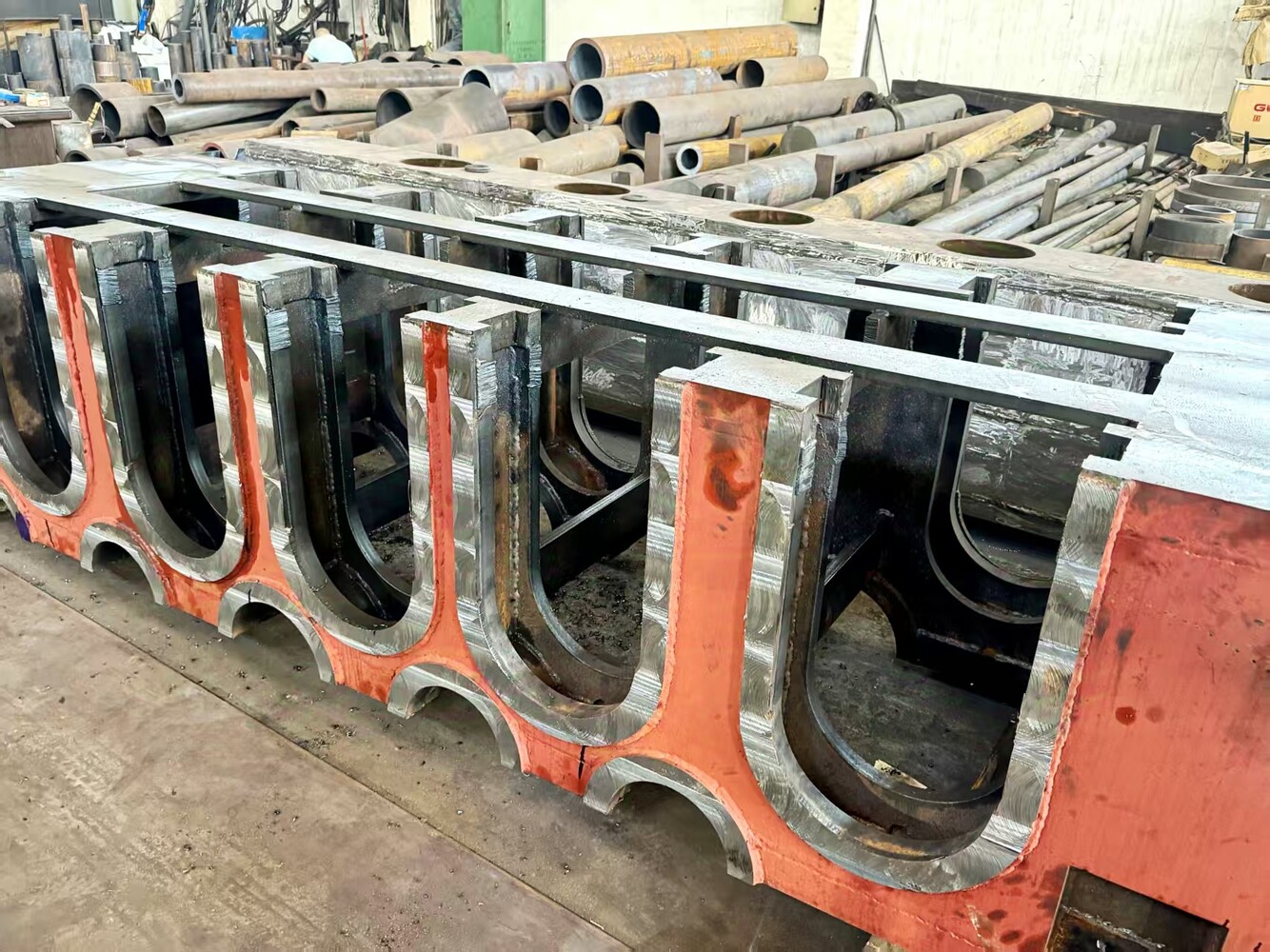

2.2 Deformation-Resistant Frame: Gantry-type welded structure with anti-deformation coefficient 12000kN/m, deformation <0.02mm after 5000-hour fatigue test, ensuring long-term precision.
2.3 Precise Adjustment: Axial adjustment range of upper/lower rollers ±15mm, controllable reduction amount, adapting to different workpiece specs for consistent batch quality.
3. Cost Reduction & Efficiency: Intelligent Operation + User-Friendly Design
3.1 Quick Roller Change: Hydraulic-driven integral roller replacement, completed in only 45 minutes, minimizing downtime and improving equipment utilization.
3.2 Automated Configuration: Equipped with automatic pinch mechanism, inlet comb alignment device and scale collection system, simplifying operations and reducing labor costs.
3.3 Long-Lasting Maintenance: Thin oil circulation lubrication + closed-loop detection system, extending bearing life , reducing oil consumption to save maintenance expenses.
4. Export Readiness: Global Certifications + Customized Services
4.1 Authoritative Certifications: Fully compliant with environmental and safety standards of steel mills in Europe, America, Southeast Asia, ensuring smooth export.
4.2 Customization Support: Offers optimizes solutions based on customers’ production capacity, profile specs and site conditions, providing complete technical documents, installation, commissioning and training.
📩If your steel mill is seeking productivity upgrading, quality improvement or cost optimization, feel free to inquire about detailed parameters, request test reports or book factory visits!
