Against the trend of global long-product rolling lines upgrading toward high speed, continuity, automation, and heavy load, bar bundling is no longer just “tying materials tight”—it directly determines finished product appearance, packaging qualification rate, transportation safety, and line takt time.
Based on the latest technical proposal of the REBM-800D Automatic Double-Wrap Binding Machine (Air-Cooled), I will share a full set of automated bundling solution that directly rivals imported equipment and fits 10M-ton steel mills: covering real engineering demands, core parameters, working logic, delivery standards, and performance commitments.
1. Industry Pain Points: Why Traditional Binding Machines Fall Short
Most conventional lines use single-wrap, labor-intensive, loose, low-speed binding machines. In modern high-capacity, high-takt, heavy-load production, they commonly cause:
- Bundling speed fails to match rolling rhythm, becoming a production bottleneck
- Loose bundling for heavy packs (2–4 tons), leading to scattering and loss during transport
- High knot failure rate, frequent maintenance, and costly downtime
- Incompatible spare parts with imported models, high cost and long lead time
- Poor stability in extreme environments (-10℃ ~ +50℃)

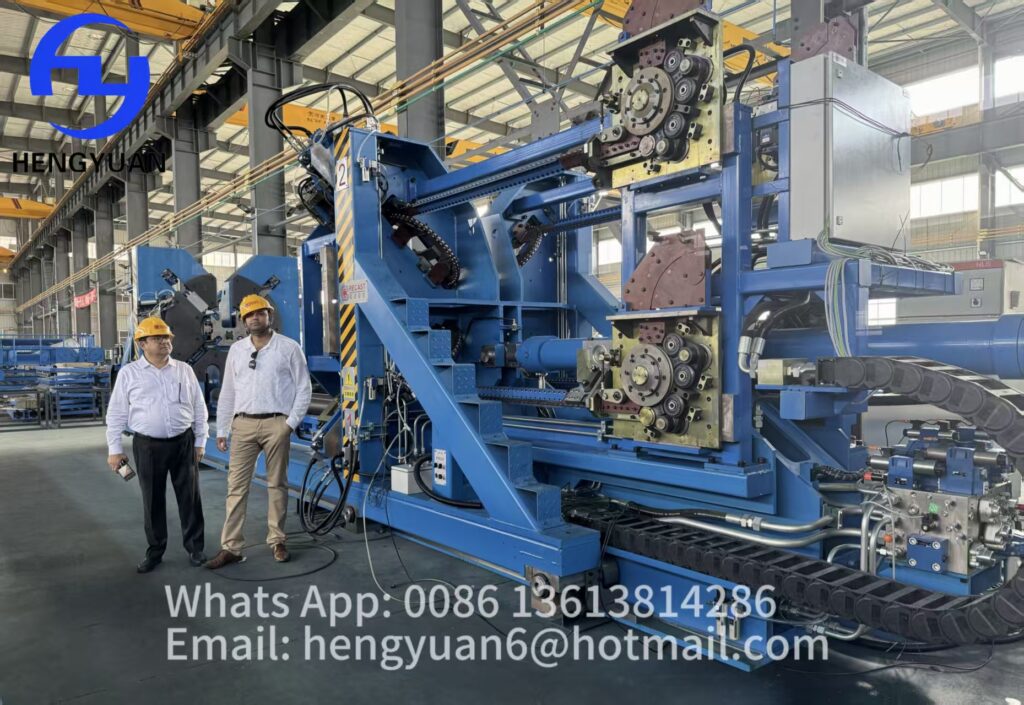

The REBM-800D is designed to solve these pain points: an import-replacement, fully automatic, single/double-wrap switchable, highly reliable bar binding machine.
2. Core Positioning: Who It Is For & What It Solves
This machine targets long-product rolling lines with annual output over 1 million tons. Typical application:
- Round/deformed steel bars: φ12–50 mm
- Bundled outer diameter: φ150–450 mm
- Bundle weight: 2–4 tons
- Cut length: 6 m – 12 m
- Working condition: Roller table longitudinal conveying; table height ≥700 mm; wide temperature resistance
In one sentence:
Automatic single/double-wrap switching, full unmanned operation, tightening force >9000 N, stable knotting, fast speed, and interchangeable parts with top international brands.
3. Key Technical Specifications: Professional, Transparent, Deployable
1. Basic Process & Performance
- Binding wire: φ6.3–7 mm, Q215/Q195/Q235 plain round wire
- Wire path: φ800 mm (inner φ700 mm)
- Single-wrap takt: ≈10 sec; Double-wrap takt: ≈14 sec
- Tightening force: F > 9000 N
- Wire take-up cylinders: ≥8 sets for uniform tension
- Knot turns: freely adjustable
- Ambient temperature: -10℃ ~ +50℃
2. Hydraulic & Electrical (Industrial-Grade Stable Configuration)
- Hydraulic flow: ≈100 L/min per unit
- Working pressure: 10–12 MPa
- Control voltage: 24V DC
- Main power: 400V AC/PE 50Hz, ≈20 kW per unit
3. Core Component Brands (Imported-Grade Standard)
- Hydraulic valves & pumps: Rexroth
- PLC: SIEMENS
- Main oil pump motor: Innomotics
- Sensors: ifm Electronic GmbH (Germany)
- Filters: HYDAC
This configuration ensures: reliable continuous operation, low failure rate, long service life, and user-friendly maintenance.
4. Working Logic: Fully Automatic Closed Loop
The REBM-800D uses a closed wire path + openable upper/lower channels + hydraulic lifting head + waste-free knotting design. Standard cycle:
- Bars pass through the closed wire path via roller table and stop at the preset position
- Bundler clamps and fixes the bundle
- Binding head lowers and grips wire ends
- Feeding wheel reverses to tighten firmly around the bundle
- Knotter rotates, cuts, and completes knotting — no wire waste
- Clamp releases, machine resets, bundle proceeds
Double-wrap mode uses step-by-step guide wheel opening, layered fitting, and gradual tensioning for two even, stable loops with neat appearance and no loosening.
5. Equipment Composition: Complete Delivery, Ready for Installation
Each REBM-800D includes full functional units:
- Base and guide rail frame
- Binding head (wire path, feeding, knotting, cutting)
- Integrated hydraulic unit (400L tank, with temperature control, heating, cooling, filtration)
- Electrical control panel (PLC + manual/auto mode)
- Wire uncoiler, storage and take-up device
Design highlights:
- Machine can be manually moved out ≈1400 mm for maintenance
- Hydraulic lifting head adapts to various bar sizes
- Zero wire waste in full process, reducing consumable cost
6. Scope of Supply & Interface: Clear for Engineering
Standard Supply (typical configuration: 2 sets)
- REBM-800D Automatic Double-Wrap Binding Machine ×2
- Including wire uncoiler and handling devices
Buyer’s Scope (clear interface, no hidden items)
- Equipment foundation, anchor bolts, embedding, grouting
- Power supply, cables and trays
- Hydraulic oil, lubricant, commissioning consumables
- Lifting, platforms, tools for installation
This clear interface greatly shortens pre-site communication and rework.
7. Technical Documents, Installation, Commissioning & Training
1. Complete Document Package
- Mechanical/hydraulic assembly drawings, parts lists
- Hydraulic & electrical schematics
- Operation and maintenance manuals
- Factory inspection and commissioning reports
2. On-Site Technical Support
- Installation guidance: 1 man-day per unit
- Commissioning + operator training: 2 days per unit
- Overseas projects: terms clarified via supplementary agreement
3. Design Document Delivery
Within 1 week after contract effective date:
- Utility requirements (power, water, air: flow, pressure, quality)
- Foundation, loading, embedding, trench drawings
- Media interface diagrams (coordinates, diameter, connection)
- Electrical equipment list and interface points
Fully friendly to EPC and owners — clear preconditions, no delays.
8. Performance Guarantee: Quantifiable, Acceptable, Traceable
Performance acceptance within 1 week after on-site commissioning:
- Single-wrap: 100 consecutive knots, error rate ≤2%
- Double-wrap: 100 consecutive knots, error rate ≤1%
- Re-test within 1 week if first run fails
- Warranty per commercial contract under normal use and maintenance
These indicators match top international brands and are critical for stable high-volume production.
9. Delivery Schedule
Delivered to designated domestic port within 90 days after contract effective date.
For overseas projects, we support full logistics: export packing, inspection, documentation, freight coordination.
10. Summary: What Makes REBM-800D Stand Out
From the user’s perspective, the real value:
- Fast takt: 10s single-wrap, 14s double-wrap
- Strong tightening: >9000N, no loose 2–4t bundles
- Low failure: knot error ≤1%–2%, minimal downtime
- Cost-efficient: parts interchangeable with imports, low spare part cost
- Robust: wide temperature, dust-resistant, mill-proven
- Full service: documents, training, commissioning, warranty — complete deployment
For 10M-ton bar lines, it is not just “a binding machine” — it is a core section equipment that improves appearance, reduces loss, stabilizes takt, cuts labor, and rivals imports.
