In modern section steel rolling production lines, the palletizing process is a critical link connecting rolling, finishing, and finished product warehousing. A stable, efficient, and highly automated palletizing system significantly improves overall production capacity, reduces manual intervention, lowers safety risks, enhances surface quality of finished products, and delivers long-term economic benefits for steel enterprises.
Today, we would like to introduce our Automatic Magnetic Robot Stacker System, designed for automated palletizing of medium and large section steel. It is widely suitable for angle steel, channel steel, small I-beams, flat bars, and special profiles, making it an ideal solution for new high-speed rolling lines and automation upgrading projects.
1. Overview of the Magnetic Robot Palletizing System

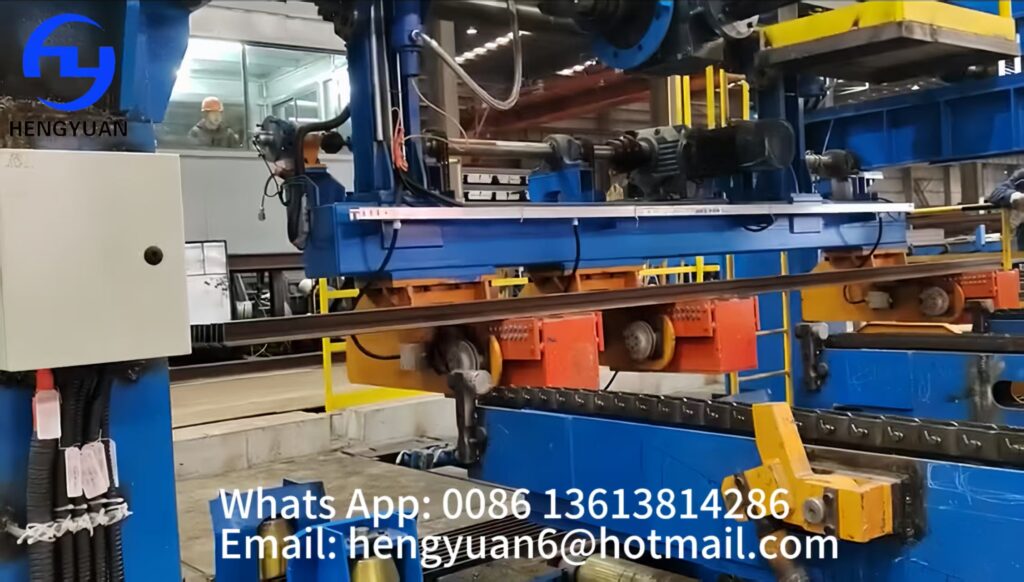

The Automatic Magnetic Robot Stacker is an intelligent equipment integrating mechanical transmission, servo control, electromagnetic adsorption, and automatic detection. With electromagnetic gripping as the core technology and high-precision servo motion control, the system fully automates conveying, grouping, positioning, counting, palletizing, end alignment, and finished product output without manual operation.
Compared with traditional mechanical grippers, wire rope lifting, and manual palletizing, the magnetic robot palletizing system offers outstanding advantages:
- Electromagnetic adsorption eliminates surface scratches and deformation of steel products.
- Wide adaptability to various profiles without frequent tooling changes.
- High positioning accuracy, smooth action, and excellent repeatability.
- Mature and reliable structure with long service life and low maintenance cost.
- Capable of 24-hour continuous operation to meet heavy-duty rolling line requirements.
Standard workflow of the system:
Conveying → Grouping → Positioning → Counting → Gripping → Flipping → Palletizing → Alignment → Output
2. Core Technical Parameters
The palletizing system is designed for heavy load, high speed, and high precision, and can be customized according to production line requirements. Typical technical parameters are as follows:
- Applicable profiles: Angle steel, channel steel, small I-beams, flat bars, special profiles
- Gripping mode: Electromagnetic adsorption with stable suction and power-off protection
- Effective electromagnet width: 700 mm
- Palletizing length: 6 m (double-line synchronous operation), 9 m, 12 m
- Motion control: Full servo motor drive for fast response and stable running
- Palletizing cycle: ≤12 seconds
- Positioning accuracy: ±1 mm
- Production capacity: Up to 200 tons per hour and above
- Application environment: Continuous production, high temperature, dust, heavy-duty impact
3. Complete Equipment Composition and Function Introduction
The complete section steel palletizing production line consists of eight core functional units, which cooperate to achieve full-line automated operation:
- Chain-type Steel Conveyor Roller Table
- Double-chain Bed Conveyor Line
- Grouping and Supporting Mechanism
- Servo-adjustable Counting Baffle Mechanism
- Magnetic Robot Palletizing Main Device
- End Alignment Device
- Finished Product Output Roller Table
- Electrical Automatic Control System
4. Design & Manufacturing Standards and Key Component Configuration
All equipment is designed, manufactured, inspected, and accepted in strict accordance with national and heavy machinery industry standards to ensure stability and service life.
Implementation standards include:
- GB/T 1801 Limits and fits
- GB/T 1184 Geometrical tolerances
- GB/T 1031 Surface roughness
- GB 5903 Industrial closed gear oil
- JB/T 5000 Heavy machinery general technical conditions
- GB/T 4879 Rust-proof packaging
- GB 190 Packaging marks for dangerous goods
Key component configuration:
- Frame: High-quality Q235 welded structural steel with high strength and anti-deformation
- Gears: 20CrNi2MoA alloy steel, carburized, quenched, and ground; hardness HRC58–62
- Main shafts: 35CrMo forgings, quenched and tempered for anti-fatigue and impact resistance
- Bearings: HRB, Wafangdian, Luoyang, TM
- Main motors: Inovance variable frequency / servo motors
- Control system: Siemens, ABB and other international brands for high reliability
5. Supply Scope and Interface Division Between Supplier and Buyer
Supply Scope (Equipment Manufacturer)
- Complete solution design, structural design, electrical design, and software programming
- Manufacturing, machining, assembly, commissioning, and factory inspection
- Complete technical documents: general layout, assembly drawings, spare parts drawings, foundation drawings, electrical diagrams, PLC & HMI programs
- On-site installation guidance, commissioning guidance, and operator training
- Certificate of conformity, factory inspection report, and operation manual
- Long-term after-sales support, spare parts supply, and upgrade service
Buyer Responsibilities
- Provide power supply, compressed air, hydraulic power, lubricating oil, and other utilities
- Undertake equipment foundation construction, embedded parts, and anchor bolts
- Responsible for pipeline, cable laying and connection between supply points and equipment
- Cooperate in on-site installation, commissioning, and acceptance
6. Core Advantages and Application Value
- Stable and Reliable Operation
- Outstanding Production Efficiency
- Wide Application Range
- Excellent Palletizing Quality
- Reduce Comprehensive Cost
- Strong Customization Capability
7. Conclusion
With the accelerated upgrading of the steel industry toward automation, intelligence, and high efficiency, the automated transformation of section steel palletizing has become an inevitable trend.
We specialize in the design and manufacturing of magnetic robot palletizing systems and can provide global steel enterprises with one-stop solutions including consulting, 3D simulation, production line planning, equipment manufacturing, installation, commissioning, and after-sales support. Whether you are building a new rolling line or upgrading an existing line intelligently, we can provide stable, efficient, and cost-effective professional equipment.
We look forward to cooperating with more industry partners to promote the upgrading of the steel industry with intelligent equipment and create a new future of efficient, safe, and green intelligent manufacturing.
